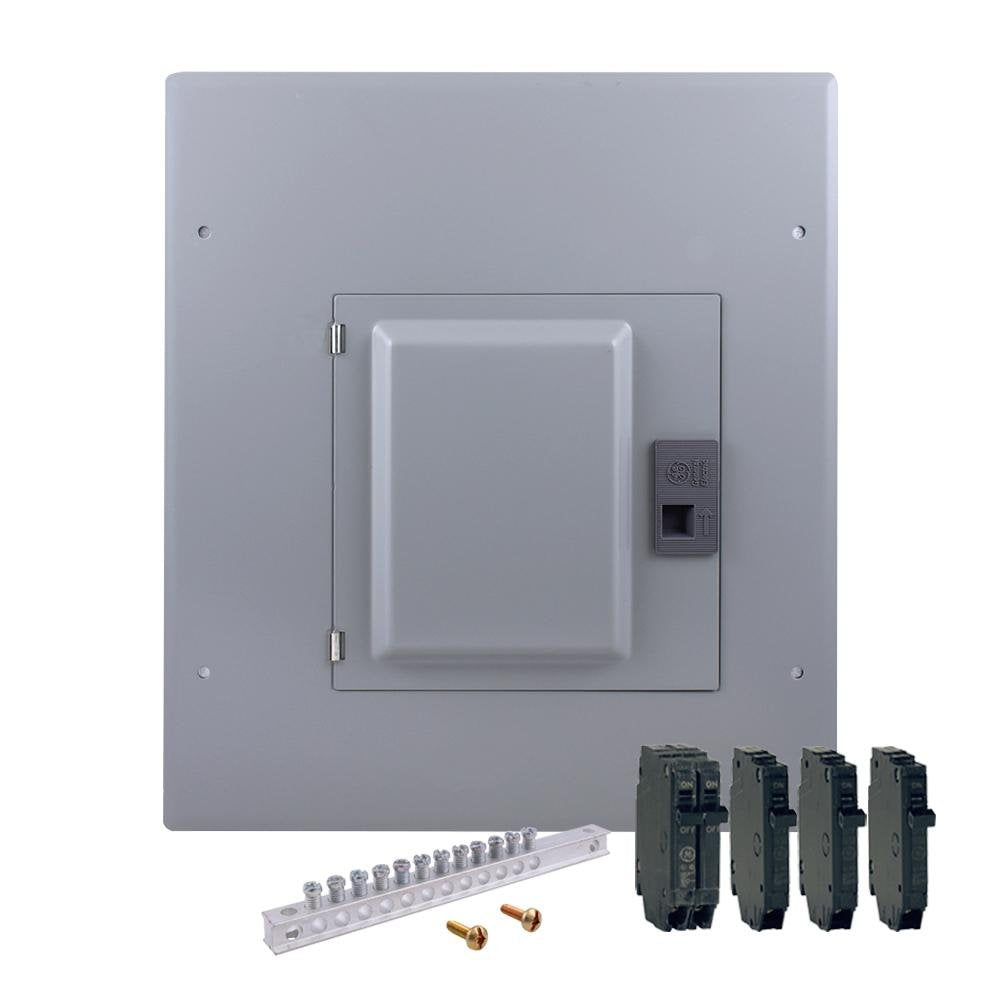

GE 125 Amp 14-Space 24-Circuit Main Lug Indoor Load Center Contractor Kit

The GE 125 Amp 14-Space 24-Circuit Main Lug Indoor Load Center Contractor Kit is pre-packaged with a selection of circuit breakers and ground bar. The UL-listed load center has holes rated 100% split neutral on each side that are compatible with #14-4 wire. The breaker box is a single-phase, 3-wire unit with a factory-installed main breaker. The center is designed and built for faster installation and a more dependable performance. This unit is compatible with GFCIs, AFCIs, Dual Function and standard circuit breakers.

Features full-length neutral bars for faster and easier wiring
Features a copper bus for increased conductivity
Galvanized box for rust resistance with a self-adjusting dead-front cover
Kit includes 3 THQP120 20 Amp single-pole circuit breakers, 1 THQP230 30 Amp double-pole circuit breaker and ground bar

Voltage (volts): 240
Electrical Product Type: Main Lug/ Main Lug Kit
Mounting type: Plug In
Indoor/Outdoor: Indoor
Number of Phases: 1
Load Center Type: Main Lug
Maximum Amperage (amps): 125
Number of Spaces: 14
Certifications and Listings: 1-UL Listed
Manufacturer Warranty: One year from first use


Load center depth (in.): 3.375
Load center width (in.): 14
Load center height (in.): 16
