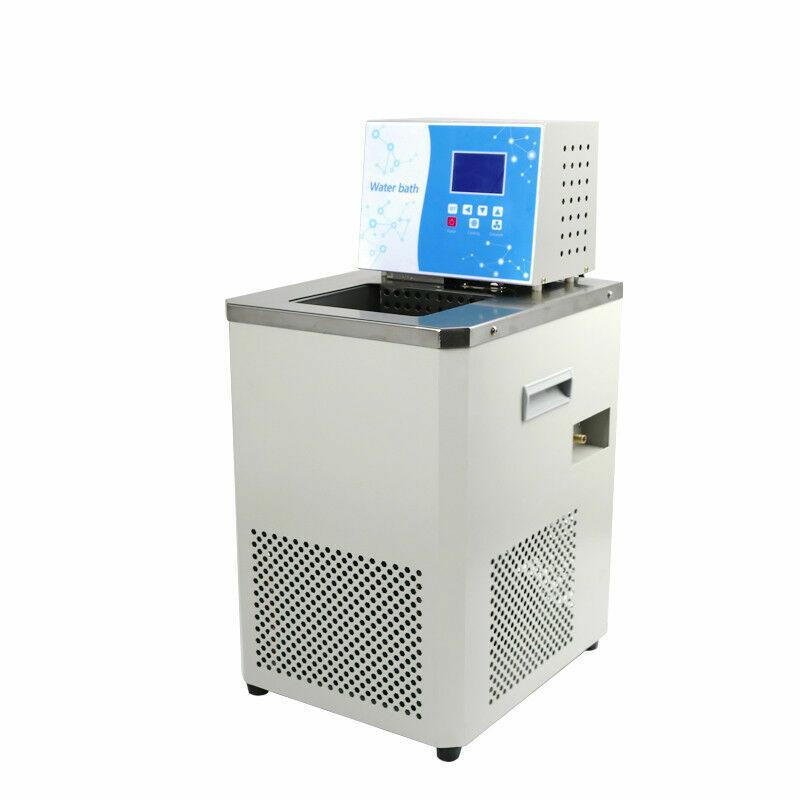

6L low temperature cooling liquid circulator pump chiller -20~100℃

6L low temperature cooling liquid circulator pump chiller -20~100℃

$1,405.99 USD
$1,405.99 USD $1,405.99 USD
Sale Sold out

220V Low Temperature Cooling Liquid Circulator 6L

　

　

　

Introduction

DC series low temperature constant temperature bath is an indispensable laboratory equipment. Which is widely used in biological engineering, medicine, food, chemical industry, metallurgy, chemical analysis, oil and other fields, provide a high precision, controlled, uniform temperature constant field source for the user, is the large, medium and small research, colleges and universities, factory laboratories, quality inspection departments ideal thermostat.

Features

1. The machine adopts microcomputer based temperature control. High accuracy of temperature control.

2. Intelligent digital system can correct the deviation of the temperature measurement, which make the digital resolution 0.1℃.

3. The refrigeration system has over-heating and over-current multiple protective function.

4. The machine has intelligent instrument control, which easy to operate and of high temperature stability. It is also has alarm function when the temperature reach the upper and lower limitation.

5. Equipped with fully efficient anti-interference compressor.

6. Cooling rate is faster than similar products, lower noise, lower vibration.

Parameter

Model: DC-2006

Volume: 6L

Power:1000W

Operating ambient temperature: 5℃-30℃

Relative maximum humidity: 80%

Temperature range: -20℃-100℃

Temperature fluctuation: ±0.1℃

Internal material: 304 stainless steel

External material:  08F high quality steel plate

Opening Size: 6''×4.3''

External dimensions: 16''×19''×33''

Circulating pump flow: 8L/min

Net weight: 45kg(99lb)

Voltage: 220V

Instruction

1. Remove the package, clean the working platform

2. Add liquid medium into tank, make the medium level 30mm(1.18'') lower than the working platform

3. Connecting circulating pump inlet and outlet pipe

①When the pump doesn't need to carry out the outer-circulation, just need to use hose to connect the inlet pipe with the outlet pipe

②When the pump is used for the outer circulation of the constant temperature liquid, please use 1 pipe to connect the outlet pipe of the pump with the inlet pipe of the container outside of the tank. Use another pipe to connect the inlet pipe of the pump with the outlet pipe of the container outside of the tank.

Precautions

1. Before using the tank, please must add liquid medium, otherwise, it will damage the heater. The medium level must lower than the platform.

2. The selection of the liquid medium in the tank shall be in accordance with the following principles:

A. When the operating temperature is 5℃-85℃, the liquid medium usually use water

B. When the operating temperature is 85℃-95℃, the liquid medium can use 15% glycerin-water solution

C. When the operating temperature is lower than 5℃, the liquid medium is generally alcohol or freeing liquid

3. To improve the service life of the refrigeration system, the system adopt startup protection. Once turn off the refrigeration system, it will need 10-20minutes' space to turn on the switch again (such as turn on the switch to start the compressor in less than 10 minutes from the last operation,  it is a normal phenomenon that the system will not start)

4. Power supply should be greater than the total power of the machine, the power supply must have a good grounding device.

5. The machine should be placed in a dry and ventilated place.

6. When the working temperature is very low, please do not put your hands into the tank to avoid frostbite.

7. Cut off power supply when finishing working.

 　
Items included:

1 set of Low Temperature Cooling Machine (020239)

　
Item# Description QTY Unit
020239 Low Temperature Cooling Machine 1 Set
