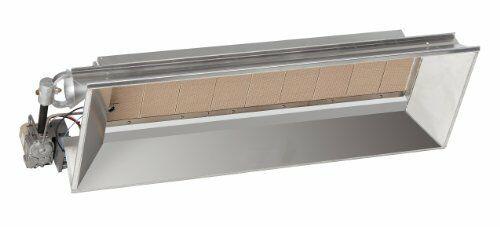

60,000 BTU NAT. GAS HIGH INTENSITY RADIANT AUTO-SPARK IND. HEATER A380624

DESCRIPTION

Infrared Heaters direct line of site radiant heat to floor-level objects, which in turn, heat surrounding air to the desired temperature. Personnel and objects at floor level enjoy instant, cost-saving comfort.

Heatstar High Intensity Heaters have multiple outputs per model series

Additional burner orifices are included that enables the installer to increase or decrease the output of the heater

Spark ignition heaters ship with 40VA transformers

Milivolt control heaters shipped with thermostat

Non-corrosive materials are used throughout heaters construction

PRODUCT DETAILS

Weight (Lbs) 33.75

BTU per Hour 60000

Fuel Type Natural Gas

Ignition Electronic

Electrical Rating 120V / 60Hz

Electrical Connection Transformer

Transformer Included Yes

Gas Inlet Connection 1/2in ID FPT

Gas Inlet Pressure Min 7in WC

Gas Inlet Pressure Max 14in WC

Mounting Height Range 13ft - 15ft

Clearance to Combustibles: Horizontal Top 40in; Side 30in; Back 30in; Below 118in

Venting Required Not Required

Thermostat Optional Sold Separately

Item Length (in)

Item Width (in)

Item Height (in)

Item Weight (lb)

Warranty: Gas Control 1 Year Limited

Warranty: Burner 10 Year Limited Pro-Rated

Model 8060 NPP
